Feb. 16, 2025

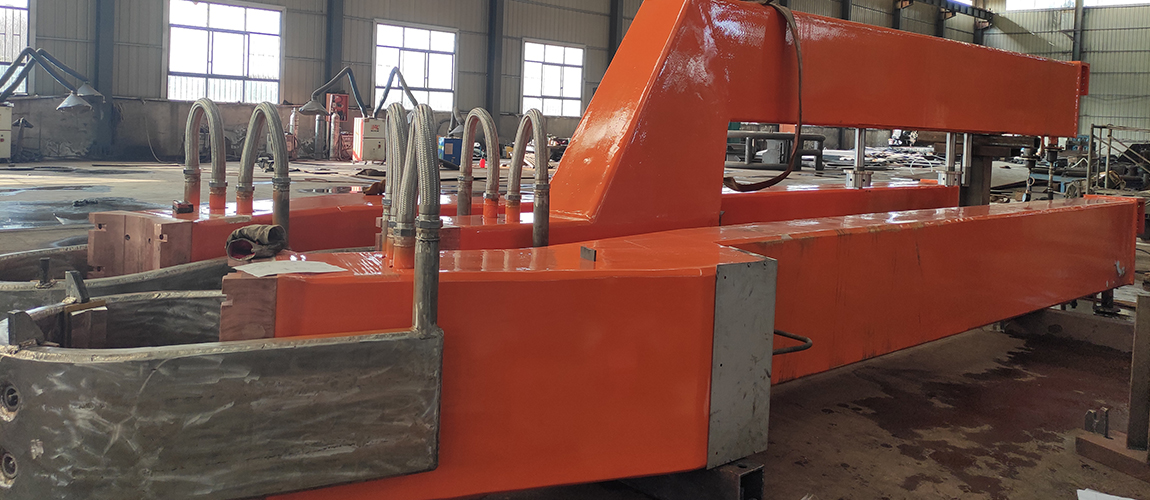

Power conductive electrode arm is an important component in the electric arc furnace (EAF) for conducting current to the electrode. The high temperature they generate is used to melt the scrap metal. The design and material selection of the electrode arm directly affect the current conduction efficiency and the overall productivity of the furnace.
The conductive cross arms is a device used to transfer electrical energy to the furnace. It is usually made of conductive materials (such as copper or copper alloys) with high conductivity and high temperature resistance. Its main function is to transfer current from the power supply to the electrodes in the furnace, thereby heating the charge.
1. Electric arc furnace: used for steel smelting, the metal is heated by the arc generated by the electrode.
2. Submerged arc furnace: used to produce ferroalloys, ferrosilicon, etc., the electrode arms conducts current into the furnace to heat the ore.
3. Resistance furnace: Some resistance furnaces also use electrode arms to transfer current and heat the materials in the furnace.
4. Vacuum arc furnace: used for melting high-purity metals, the conductive cross arms works in a vacuum or inert gas environment.
5. Electroslag remelting furnace: used for refining metals, the electrode arm conducts current into the furnace for electroslag remelting.
High conductivity: ensures efficient power transmission.
High temperature resistance: can work stably in high temperature environment.
Mechanical strength: has sufficient strength to support the electrode and withstand mechanical stress.
Cooling system: usually equipped with water cooling or air cooling system to prevent overheating.
In short, the power conductive electrode arm is mainly used in electric arc furnace, submerged arc furnace, resistance furnace, vacuum arc furnace and electroslag remelting furnace, etc., and is a key component in the electric furnace system.
