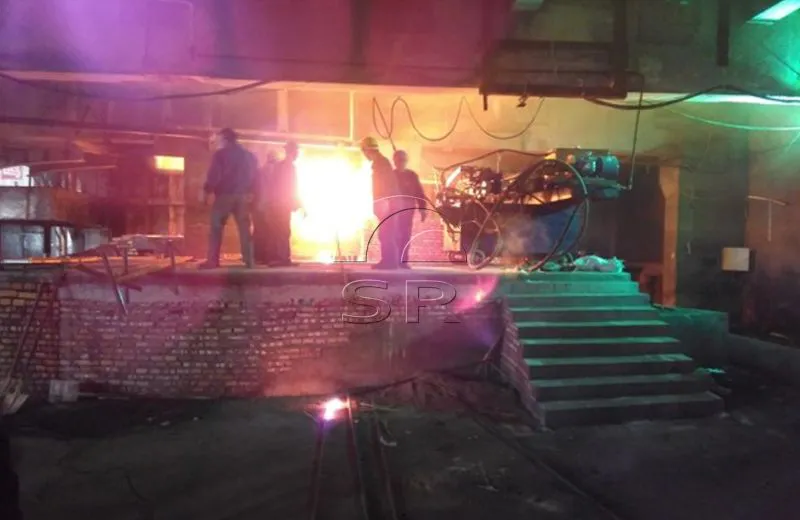

High Carbon Ferrochrome Furnace

1. A fixed semi-enclosed circular furnace body is adopted Ferrochrome SAF, the bottom is reinforced with high-quality I-beams, and the ferrochromium furnace furnace shell plate is reinforced with Q235 steel as a rib plate;

2. The low smoke hood structure, the furnace door of the high-carbon ferrochrome furnace is designed to be closed; the smoke hood adopts double chimneys for smoke exhaust;

3. The electrode lifting is controlled by hydraulic cylinders, the electrode copper tile is clamped by a brake, and the electrode is clamped and released by a hydraulic disc spring brake. The upper and lower cylinders can be used to realize manual and automatic fixed-length pressing and releasing;

4. A new energy-saving short-network structure with a regular triangle layout is adopted;

5. The electrode distribution circle can be adjusted to adapt to changes in raw materials, products and processes;

6. Circulating water cooling, the equipment requires an emergency water source to prevent damage to parts caused by sudden water outage;

7. The hydraulic system adopts a double-click double pump configuration, and the valve block adopts The integrated block structure is efficient, safe and reliable;

8. The ferrochromium furnace transformer of the high-carbon ferrochrome furnace adopts a side-outlet low-loss energy-saving transformer, which can be used with an overload of 20%;

9. The high-voltage electrical control adopts a GBC vacuum switch cabinet, which has a complete range of voltage, current, power and electricity detection and measurement and relay protection, and is equipped with a zinc oxide lightning arrester to absorb operating overvoltage;

10. The low-voltage electrical programmable controller controls the control with high control accuracy and low failure rate;

11. The electrode lifting, batching and feeding are all manually and automatically controlled, and the operation is simple and reliable.

The mechanical part of the high carbon ferrochrome furnace is mainly composed of the furnace shell, semi-enclosed low smoke hood system, electrode holder system (combined holder or pressure ring holder can be selected), short net system, smoke exhaust system, material distribution system, material discharge system, hydraulic system, pneumatic system, electric furnace cooling water system, etc.

Auxiliary equipment consists of: batching system, feeding system, iron tapping system, slag tapping system, casting equipment, product finishing system, etc.

The tail gas purification and recovery device uses a large bag cyclone dust removal device.

The electrical part of the high carbon ferrochrome furnace is composed of a high voltage system (switch station), a low voltage system, a large screen monitoring system and an automatic control system.

As an one of famous high carbon ferrochrome furnace manufacturers in China, Sanrui provide customized ferro chrome furnaces OEM manufacturing service as follows:

Raw material supply system: hopper, feeding pipe

Furnace body: furnace body, furnace shell, furnace bottom support beam, furnace top ring, furnace lining

Semi-enclosed furnace cover: semi-enclosed furnace cover, furnace cover side panels and furnace door, electrode sealing device, chimney, outlet smoke hood and exhaust pipe

Short network: compensator, conductive copper bar, short network hanging system, collector ring and bracket, cable, conductive plate

Electrode device: electrode holding column, electrode shell, electrode clamping device, electrode pressing device, electrode lifting device, electrode guide and distribution circle adjustment, steel platform

Burning device: burning device short network （bus bar system), burning device guide rails and guide rods, burner body, graphite electrode, insulating material

Cooling water system: water inlet distributor, return water collection tank, cooling water pipe, return water pipe, pressure gauge, thermometer, valve

Hydraulic system: electrode clamping cylinder, friction ring clamping and releasing cylinder, electrode pressing and releasing cylinder, hydraulic pump station, motor, control valve, accumulator, external oil pipe

Ferrochromium furnace transformer

Low-voltage electrical system: low-voltage electrical control, low-voltage power supply cabinet, low-voltage protection cabinet, electrode lifting control console

Discharging system: discharging pot, discharging car

Loading winch

Using the best available technology (BAT), the Ferrochrome SAF furnace designed and manufactured by Sanrui adopts advanced tubular water-cooled furnace cover technology, tubular water-cooled furnace wall technology, copper-steel composite plate conductive cross arm technology, EBT steel-tapping technology, large-section water-cooled cable technology, PLC control technology, high impedance technology, auxiliary energy technologies such as carbon-oxygen gun oxygen burner, oxygen-enriched operation technology and hot iron charging technology, etc.

We provide a series of ferrosilicon furnace cover designs to suit different ferrosilicon furnace applications. The closed furnace cover solution makes smelting and maintenance safer. The furnace cover is usually made of water-cooled steel plate, but a combined solution combining water-cooled steel plate and refractory materials can also be used. The airtight seal ensures low emissions and efficient collection and utilization of CO gas.

Minimizes consumption of energy, coke and electrode paste

Achieves high productivity and metal recovery, especially when using pellets

Purified CO gas can be used effectively in different plant applications

Preheating to 600ºC saves 70 kWh per ton of metal smelted for every 100ºC increase in temperature

Allows you to reduce operating costs and reduce CO₂ and dust emissions
