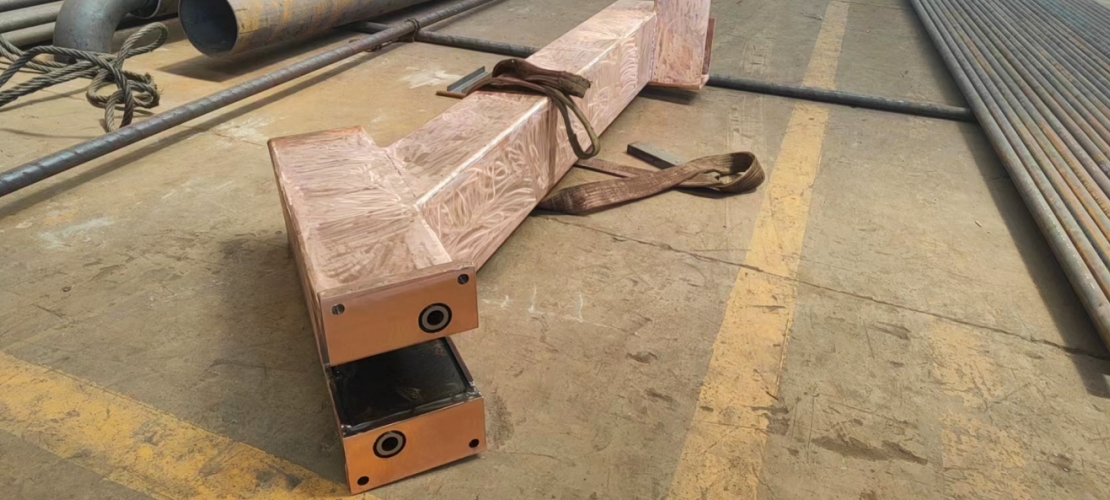

The electrical cross arm for electric arc furnace (EAF) is mainly used to clamp and support electrodes and transmit electrical energy to electrodes for heating. Its material is usually highly conductive copper or copper alloy, or copper-steel composite plate and aluminum-steel composite plate to ensure good conductivity and heat resistance.
As an important accessory for electric arc furnaces, submerged arc furnaces and other melting furnaces, the application of electrode arms has the following characteristics
The conductive cross arms is made of copper or copper alloy, which has excellent conductivity and can effectively transmit large current to ensure efficient operation of the arc furnace.
The cross arm is sturdy in design and can withstand high temperature and mechanical stress to ensure long-term stable operation in harsh environments.
The electrode arm of the electric furnace is usually equipped with a water cooling or air cooling system to prevent deformation or damage of the material caused by high temperature and extend the service life.
The length and angle of the EAF conductive cross arms are adjustable, which is convenient for optimizing the process parameters of the arc furnace according to production needs.
The modular design makes installation, disassembly and maintenance more convenient, reduces downtime and improves production efficiency.
The electrical cross arm for EAF has good insulation and protection measures to reduce operating risks and ensure the safety of personnel and equipment.
The efficient conduction and cooling system of the electrode arm reduces energy loss and meets the energy-saving and environmental protection requirements of modern industry.
The electric furnace conductive cross arms is suitable for a variety of electric arc furnace types and different smelting processes, and has a wide range of applications.
In short, the electrical cross arm has the advantages of high efficiency, stability, safety, and environmental protection in the electric arc furnace, and is a key component in the smelting process.
