Mar. 09, 2025
In recent years, with the increasing requirements of the steel industry for high efficiency, energy saving and environmental protection, electric arc furnace steelmaking technology has been widely used.
As one of the key components of the electric arc furnace, the performance and reliability of the water-cooled cable directly affect the operating efficiency and safety of the electric arc furnaces.

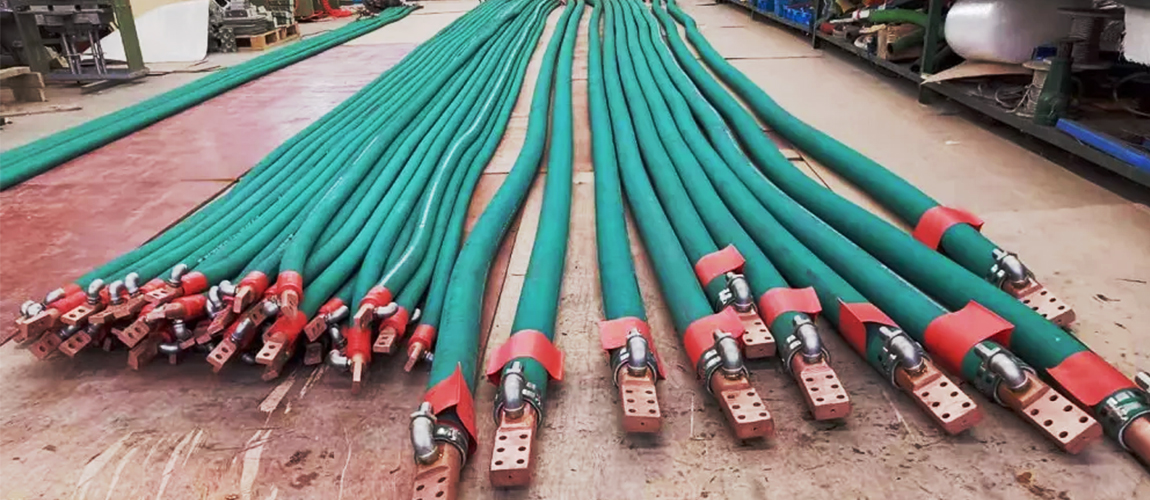

Electric arc furnace water-cooled cables is a cable that is cooled by water circulation. Its mainly used to connect the transformer and electrode of the electric arc furnaces, transmit strong current to the electrode, and thus generate a high-temperature arc to melt the scrap steel. Compared with traditional cables, water-cooled cables have the following advantages:
Water-cooled cables use special structures and high-quality materials to withstand larger currents. At the same time, the water cooling system effectively reduces the cable temperature to avoid overheating damage.
The conductors and insulation materials of the water-cooled cables are specially treated, with good high temperature resistance and corrosion resistance, and longer service life.
Water-cooled cables are equipped with a complete temperature, flow and other monitoring systems, which can monitor the cable operation status in real time, and promptly discover and eliminate safety hazards.
In order to ensure the safe and stable operation of electric arc furnace water-cooled cables, the following points need special attention:
Choose appropriate cable specifications:
Choose appropriate cable specifications according to the power, current and other parameters of the electric arc furnace to avoid overload operation.
Ensure the quality of cooling water:
Cooling water should be kept clean to avoid impurities blocking the waterway and affecting the cooling effect.
Regular inspection and maintenance:
Regularly check the cable appearance, joints, cooling system, etc. to promptly discover and deal with potential problems.
Standardized operation:
Operators should undergo professional training and be familiar with the performance and operating procedures of water-cooled cables to avoid damage caused by misoperation.
As a professional supplier of arc furnace accessories, SR Furnace is committed to providing customers with high-quality and high-performance water-cooled cable products.
Our water cooling cables adopt advanced production processes and high-quality materials. They have the advantages of large current carrying capacity, low temperature rise, long service life, safety and reliability, and are widely used in various arc furnace equipment.
If you are looking for a reliable water-cooled cable supplier, SR Furnace will be your best choice. We will wholeheartedly provide you with high-quality products and services to help your melting furnace run efficiently and stably!
