Mar. 08, 2025

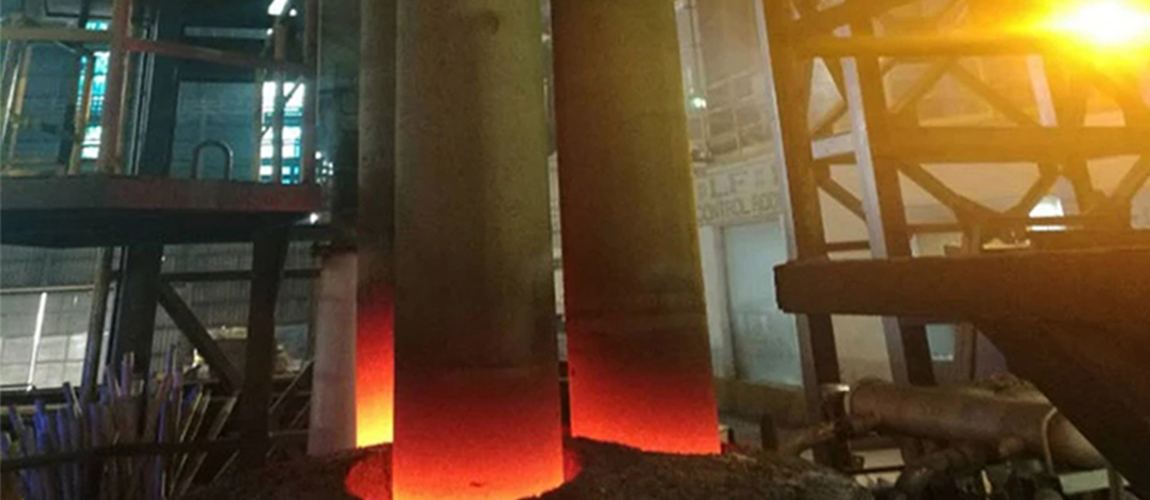

Graphite electrodes are an important material in DC electric arc furnace because they have good electrical and thermal conductivity, as well as high mechanical strength, and will not oxidize or corrode at high temperatures.
In graphite electrode electric arc furnaces, graphite electrode are usually used as cathodes, which can avoid severe erosion caused by electron radiation and the formation of "cathode spots".
Graphite electrodes play an important role in DC electric furnace, and their characteristics make them an ideal choice. Here are some of the main features of graphite electrode used in DC electric arc furnace:
Graphite has excellent electrical conductivity and can effectively conduct current to form a stable arc, ensuring the efficiency and uniformity of the melting process.
Graphite electrodes can withstand extremely high temperatures and can work stably in environments above 3000°C without melting or deformation.
Graphite is relatively stable under high temperature conditions and is not easy to react with the flux in the furnace, which reduces the generation of impurities during the smelting process, thereby optimizing the quality of steel products.
High-quality graphite electrodes have good mechanical strength to withstand the processing conditions inside the electric arc furnace, including high heat and high pressure.
Although the initial cost of graphite electrode is higher, their durability and performance can reduce operating costs over time, especially in high-volume smelting processes.
In some designs, graphite electrode can use a water cooling system to help quickly dissipate heat, extend the life of the electrode, and improve operating efficiency.
Graphite materials can be cut and processed according to specific furnace types and process requirements to suit different production needs.
Overall, the characteristics of graphite electrode used in DC electric arc furnace make them an ideal choice to improve the efficiency and quality of steel production.
If you have more in-depth questions about the specific applications or performance of graphite electrode electric arc furnaces, please feel free to let me know!
