Mar. 10, 2025

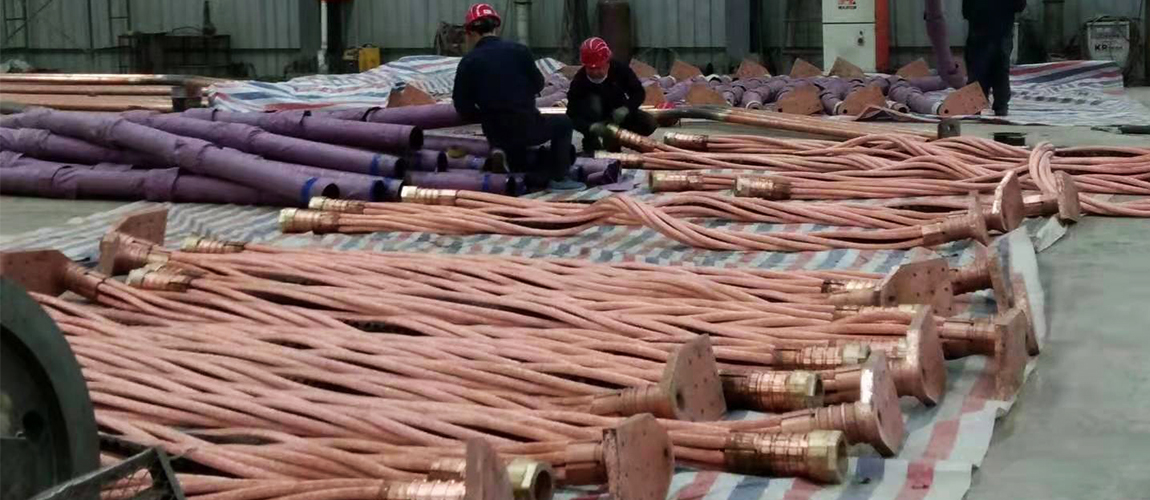

Water-cooled cables are primarily used as secondary conductors in electric furnaces, particularly in arc furnaces and melting induction furnaces for steelmaking. They are the only flexible part of the secondary electrical system and are able to support the lifting and swinging of electrodes.
Water cooled cable for electric furnace are cables specifically designed to manage heat in high-temperature environments, such as metalworking, glassmaking, and other applications involving furnaces. These cables are equipped with a water-cooling system that helps maintain optimal operating temperatures, ensuring reliable performance and longevity of the equipment.
1. Temperature Regulation: The primary function of water-cooled cables is to dissipate the heat generated when electrical current flows through them. This is essential to prevent overheating, which can lead to cable failure and potential hazards.
2. Efficiency: By maintaining lower temperatures, these cables and water-cooling systems improve the energy efficiency of the heating system and the overall performance of the furnace.
3. Material Composition: The cables are typically made of high-temperature resistant materials and may also have insulation that can withstand the potential effects of high temperatures and water exposure.
4. Durability: Water cooled cable for electric furnace are designed to withstand harsh industrial environments and are typically resistant to chemical corrosion and mechanical abrasion.
5. Safety: Reducing the risk of overheating helps minimize fire hazards and the potential for thermal damage to surrounding equipment.
Design considerations: When installing water-cooled cables, it is important to consider the flow rate of the coolant, the capacity of the cooling system, and the layout to ensure effective heat dissipation.
Regular maintenance: Regular inspection of cables and cooling systems for leaks, blockages, and integrity is critical to ensure safety and performance.
Furnaces and melting units: Primarily used in aluminum, steel, and other metal melting operations.
Heat treatment facilities: Precise temperature control is critical.
Glass production: Controls the high temperatures generated during the melting and forming of glass.
If you are considering using Water cooled cable for electric furnace for a specific application, or need more detailed information on installation and operation, feel free to ask!
