Feb. 19, 2025

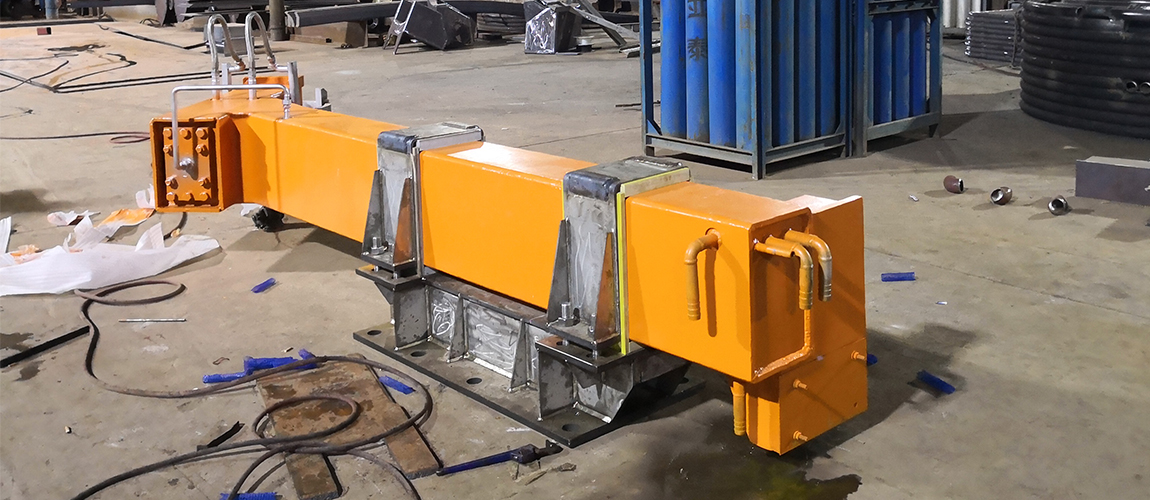

The electrode arm conductivity usually refers to the ability of the electrode arm material to conduct electricity per unit length and per unit cross-sectional area. Improving the conductivity of the electrode arm can improve the efficiency and productivity of the arc furnace. Here are some suggestions, let's explore together.
Use high conductivity materials: Choose copper or alloy materials, which have good conductivity.
Optimize material thickness: Ensure that the thickness of the electric furnace electrode arms material can provide sufficient mechanical strength while maintaining low resistance.
Increase surface smoothness: Reduce contact resistance through polishing or other surface treatment techniques.
Coating technology: Apply conductive coatings or other conductive materials to improve the contact between the electrode and the current.
Current distribution design: Ensure that the design of the conductive cross arm can evenly distribute the current and avoid hot spots.
Appropriate geometry: Designing a shape that reduces current concentration and heat accumulation helps reduce resistance.
Regular inspection & maintenance: Regularly detect the wear and aging of the electrode arm of the electric furnace, and replace or repair the damaged parts in time.
Cleaning: Keep the electrode clean to avoid the oxide layer or dirt that increases the resistance.
Optimize the cooling system: By improving the cooling strategy, control the temperature of the electrode, ensure that the conductive cross arm operates under the best working conditions, and reduce the resistance.
Through the above measures, you can effectively improve the electrode arm conductivity, thereby improving the working efficiency and economy of the arc furnace. If there are specific environmental or equipment conditions, please share them, and I can provide more targeted suggestions.
