Feb. 18, 2025
EAF (electric arc furnace) and SAF (submerged arc furnace) water-cooled cables are key components for high current transmission, mainly used in electric arc furnaces and submerged arc furnaces equipment in the metallurgical industry. These electric furnace water-cooled cables need to withstand extremely high current and heat, so water-cooling design is usually adopted to ensure their stability and safety.
1. High current transmission capacity:
EAF and SAF equipment usually need to transmit thousands of amperes of current, and the water-cooled cable design can meet this high current demand.
2. Water cooling system:
The cable is integrated with a cooling water circuit, which circulates cooling water to reduce the heat generated by the high current in the cable and prevent overheating damage.
3. Durability:
The outer layer of the cable is usually made of wear-resistant and high-temperature resistant materials to cope with harsh industrial environments.
4. Flexibility:
Despite the need to carry high current, water-cooled cables still need a certain degree of flexibility for easy installation and maintenance.
5. Safety:
The design focuses on insulation and protection to ensure safe operation in high current and high temperature environments.
Electric arc furnace (EAF): used for steel smelting, using electric arc to generate high temperature to melt scrap steel. Match water cooling system
Submerged arc furnace (SAF): used to produce ferroalloys, ferrosilicon, etc., heating raw materials through submerged arc. Usually use high current circuits

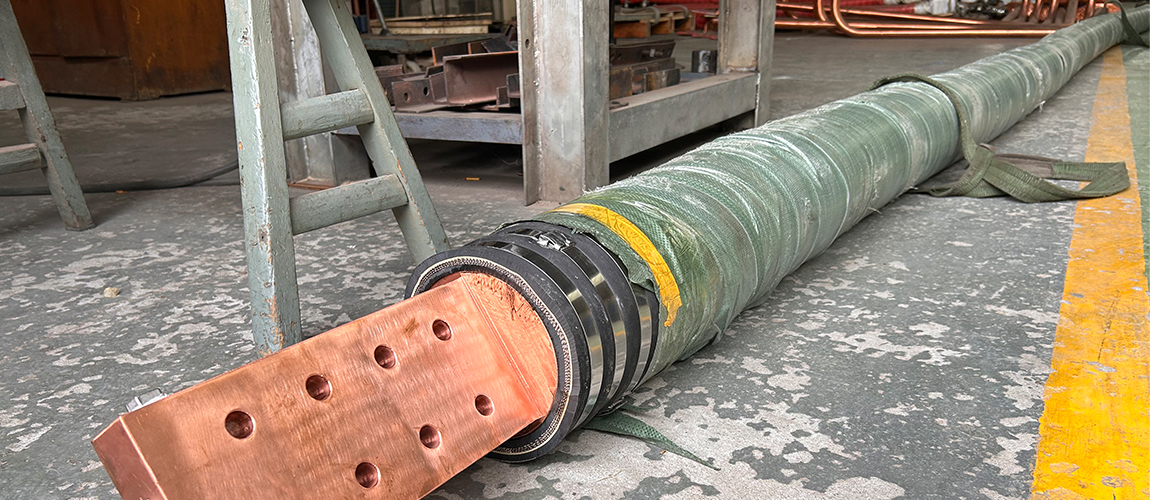

EAF SAF water-cooled cable
Regular inspection: ensure that the cooling water system is unobstructed to avoid blockage or leakage.
Temperature monitoring: real-time monitoring of cable temperature to prevent overheating.
Insulation detection: regular inspection of cable insulation performance to ensure safe operation.
