Mar. 23, 2025

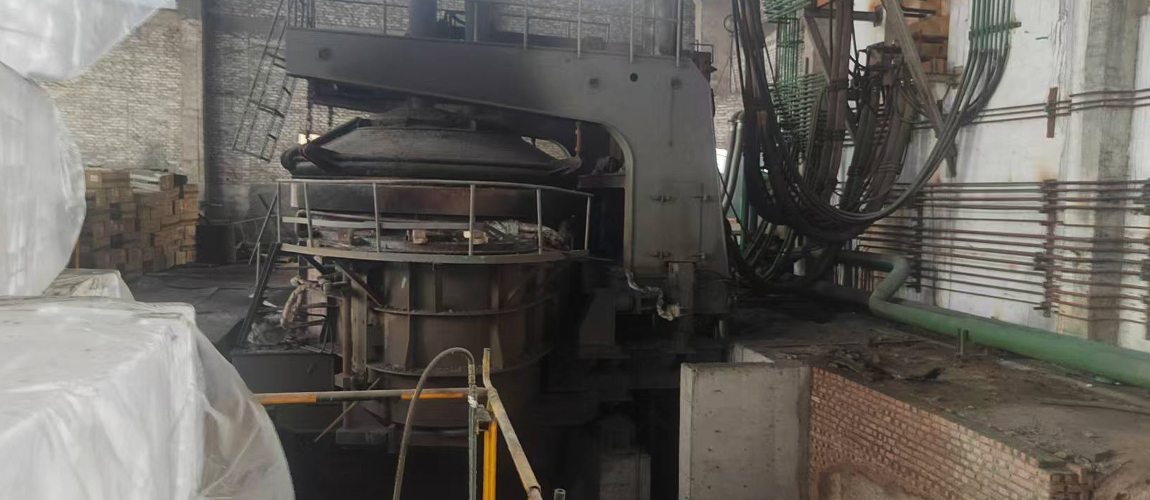

Electric arc furnace eccentric bottom tapping is a modern steelmaking electric arc furnaces technology that replaces the traditional furnace door tapping method by tapping steel at the eccentric position of the furnace bottom. This technology has the following characteristics:
Eccentric design: The tapping port is located at the eccentric position of the EAF bottom. The furnace body tilts during tapping and the molten steel flows out from the bottom.
Water cooling system: There is a water cooling device around the tapping port of the EBT electric furnace to prevent high temperature damage.
Sliding gate: Used to control the flow of molten steel to ensure the stability of the tapping process.
Reduce molten steel oxidation: Molten steel flows out from the bottom, reducing contact with air, reducing oxidation and inclusions.
Improve molten steel quality: Reduce slag mixing and improve purity.
Easy operation: EBT electric furnace automatic control reduces manual intervention and improves efficiency.
Improved safety: Avoid molten steel splashing during tapping from the furnace door to reduce safety risks.
Widely applicable: Applicable to various electric arc furnaces, especially in places with high requirements for molten steel quality.
Efficient production: Steelmaking electric arc furnaces are suitable for large-scale continuous production and improve efficiency.
Regular inspection: EAF tapping port and water cooling system need to be checked regularly to ensure normal operation.
Timely replacement: The tapping port and sliding gate need to be replaced in time after wear to prevent failure.
Automation and intelligence: In the future, more automation and intelligent control will be used to improve accuracy and efficiency.
Environmental protection and energy saving: Further optimize the design, reduce energy consumption and emissions, and meet environmental protection requirements.
The steelmaking technology of electric arc furnace eccentric bottom tapping has improved the quality of molten steel and production efficiency, while enhancing safety, which is a major advancement in steelmaking electric arc furnaces.
