Dec. 29, 2024

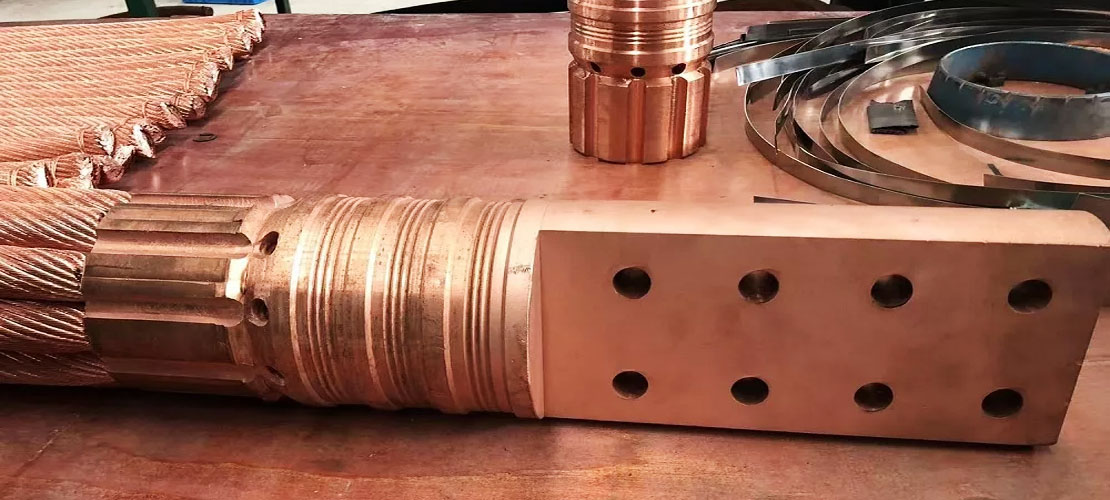

Electric Arc furnace water-cooled cable is a special cable usually used to connect the power supply and the electric arc furnace. Its main features are high conductivity and cooling performance, and it can withstand high temperatures and high current environments. In addition, this cable has good corrosion resistance and oxidation resistance, which can ensure long-term stable operation.
In terms of application, electric arc furnace water-cooled cables are widely used in electric arc furnace equipment in steel, non-ferrous metals, casting, and other industries. They transmit electrical energy to ensure the normal operation of arc furnaces.
These cables can also be used in other occasions that require high temperature, strong corrosion, or high voltage environments, such as the electrolysis industry, chemical reactors, etc.
Compared with traditional air-insulated cables, electric arc furnace water-cooled cables have the following advantages and characteristics:
1. High conductivity: Due to the use of special materials and structural design, the resistance of the cable is reduced, thereby improving the efficiency of power transmission.
2. Excellent thermal stability: The cable's outer sheath is made of high-temperature-resistant material, which allows it to maintain a normal working state in harsh high-temperature environments.
3. Good corrosion resistance: The metal part of the cable is usually made of stainless steel or a special alloy, which has strong resistance to chemical corrosion.
4. Long life and high reliability: The combination of the above advantages greatly extends the cable's service life while ensuring the system's high reliability and safety.
5. Environmentally friendly: Compared with some traditional cables, arc furnace water-cooled cables are more environmentally friendly and energy-saving during production and use.
