Feb. 03, 2025

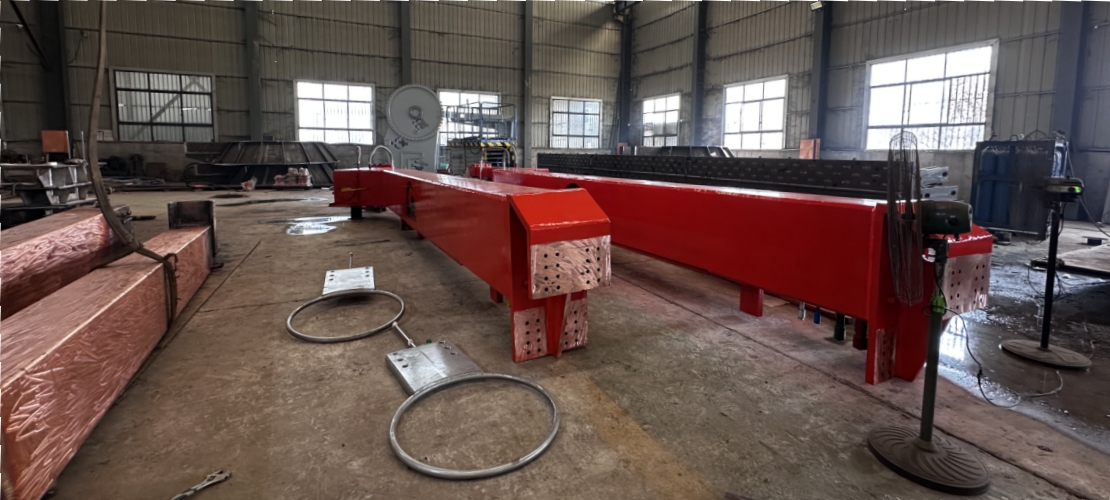

Conductive cross arms are made of copper-steel composite plates or aluminum-steel composite plates, and are mainly used in steel production in electric furnaces, arc furnaces and refining furnaces.
The electric furnace conductive cross arm provide support and stability, and are suitable for insulators, conductors and other electrical equipment in overhead transmission and distribution lines. Therefore, choosing an electrode arm of suitable material will increase the life and energy consumption of the electric furnace.
When choosing the right electrode arm material, the following key factors can be considered:
Material properties: Copper and aluminum have good conductivity, copper has higher conductivity, but aluminum is lighter and has lower cost.
Load requirements: The loads that the electric furnace conductive cross arm need to bear, including wind force, ice and snow load, etc., should be considered, and materials with sufficient strength should be selected.
Environmental conditions: In harsh environments, the corrosion resistance of materials is very important. Aluminum and its alloys generally have good corrosion resistance.
Temperature change: Different materials have different expansion properties when the temperature changes, which may affect the overall structural stability of the conductive cross arms.
Budget constraints: Choose the right material according to the project budget and find a balance between performance and cost.
Convenience of construction: Consider the weight and installation difficulty of the electrode arm material, as well as the subsequent maintenance requirements.
Industry standards: Make sure that the selected materials meet relevant industry standards and regulations.
By comprehensively considering the above factors, you can choose the conductive cross arms material that best suits your project needs. If you have specific application scenarios or other related questions, you can always contact us to provide you with more detailed suggestions.
