Feb. 09, 2025

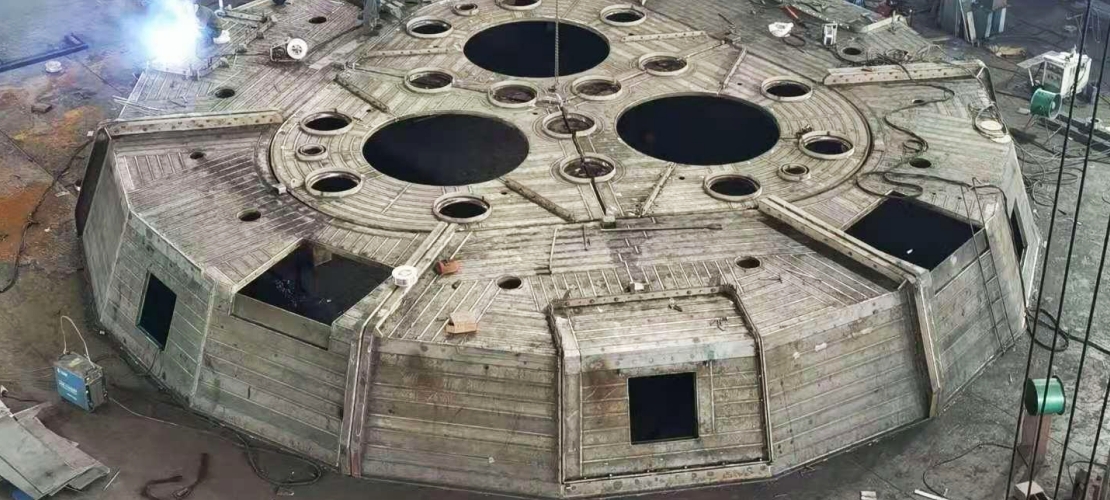

12MVA FeSi submerged arc furnace is a semi-enclosed submerged arc furnaces used for reducing ore. It is mainly used to produce important products in the metallurgical industry such as ferrosilicon, ferromanganese, ferrochrome, ferrotungsten, silicon-manganese alloy, etc. This submerged arc furnace has a capacity of 12MVA and is medium-sized.
The operating criteria of ferrosilicon furnace involve many aspects to ensure safe and efficient operation of equipment and extend service life. Let us understand the specific criteria together.
Pre-startup inspection: Confirm that the cooling system, electrical system, hydraulic system, etc. are normal, the furnace lining is intact, and there is no debris.
Startup procedure: Start the cooling system, hydraulic system and electrical system in sequence, and gradually heat up to the operating temperature.
Shutdown procedure: gradually cool down, turn off the electrical system, and finally stop the cooling system.
Working temperature: The temperature of the submerged arc furnaces needs to be controlled between 1200°C and 1600°C, avoiding too high or too low.
Temperature monitoring: real-time monitoring of furnace temperature and timely adjustment.
Raw material quality: use ferrosilicon raw materials that meet the standards to avoid impurities.
Feeding control: uniform feeding to prevent uneven reaction in the ferrosilicon furnace.
Voltage & current: keep within the rated range to avoid overload or underload of the submerged arc electric furnace.
Electrode management: regular inspection of electrode length and position to ensure normal operation.
Water pressure & water temperature: keep the water pressure at 0.20.4MPa and the water temperature not exceeding 35°C.
Regular inspection: prevent blockage or leakage.
Protective equipment: operators need to wear protective clothing, gloves, masks, etc.
Emergency plan: formulate and familiarize yourself with the emergency plan and conduct regular drills.
Regular inspection: including the lining, electrodes, cooling system, etc. of the submerged arc electric furnace.
Record management: detailed records of operating parameters and maintenance.
Waste gas treatment: Ensure that the waste gas treatment system operates normally and meets the emission standards.
Waste slag treatment: Treat waste slag according to regulations to avoid environmental pollution.
Operation training: Regularly train operators to ensure that they are familiar with the operation and safety procedures of the ferrosilicon furnace.
Assessment system: Establish an assessment system to ensure that personnel have the necessary skills.
Operation records: Detailed records of operating parameters, abnormal conditions and treatment measures.
Regular reports: Regularly report the operation of the ferrosilicon furnace to superiors and make suggestions for improvement.
Following these guidelines can ensure the safe and efficient operation of the 12MVA FeSi submerged arc furnace, extend equipment life and reduce failures.
