Mar. 16, 2025

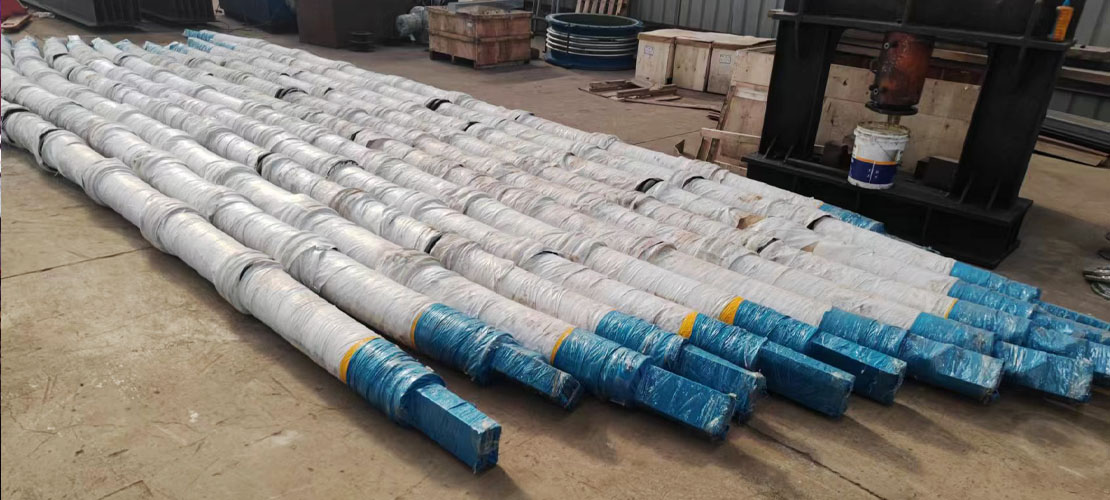

What is electric arc furnace water-cooled cable? Electric arc furnace water-cooled cable is a special cable that is usually used to connect the power supply and the arc furnace.
Its main features and related information are as follows:
It has high conductivity and cooling performance, and can withstand high temperature and high current environments.
It has good corrosion resistance and oxidation resistance, which can ensure long-term stable operation.
Arc furnace water-cooled cables are widely used in arc furnace equipment in steel, non-ferrous metals, casting and other industries to transmit electrical energy to ensure the normal operation of arc furnaces.
This cable can also be used in other occasions that require high temperature, strong corrosion or high voltage environments, such as electrolysis industry, chemical reactors, etc.
High conductivity: Due to the use of special materials and structural design, the resistance of the cable is reduced, thereby improving the efficiency of power transmission.
Excellent thermal stability: The outer sheath of the cable is made of high temperature resistant material, which can maintain normal working condition in harsh high temperature environment.
Good corrosion resistance: The metal part of the cable is usually made of stainless steel or special alloy, which has strong resistance to chemical corrosion.
Long life and high reliability: Due to the combination of the above advantages, the service life of the cable is greatly extended, while ensuring the high reliability and safety of the system.
Environmentally friendly: Compared with some traditional cables, arc furnace water-cooled cables are more environmentally friendly and energy-saving during production and use.
In summary, arc furnace water-cooled cables play an important role in multiple industrial fields and are a high-performance cable designed specifically for arc furnaces.
