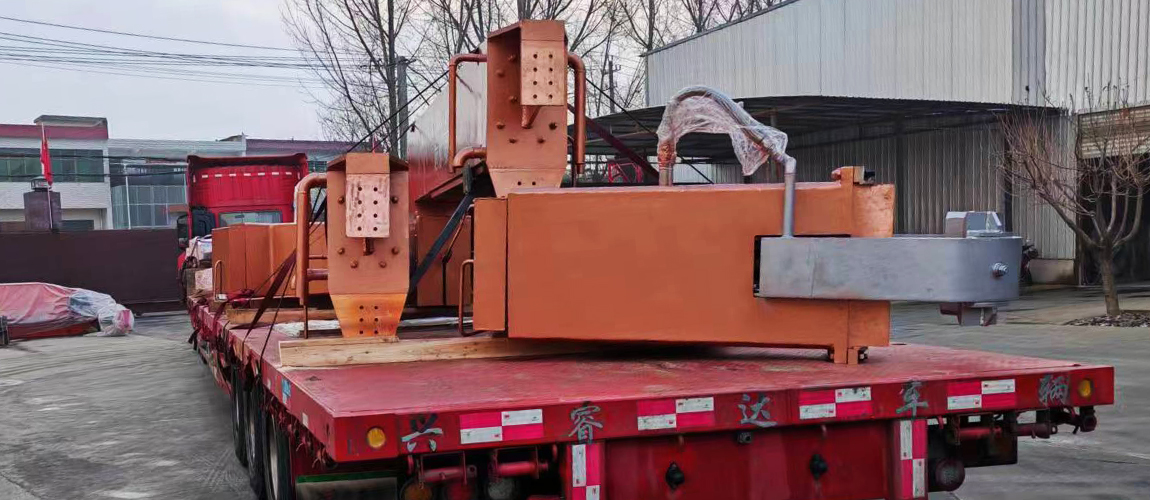

The conductive cross arm is made of copper-steel composite plate or aluminum-steel composite plate and is mainly used for electric furnace steelmaking. The conductive cross arm is an important part of the electrode lifting mechanism of modern electric arc furnace and ladle furnace.
The role of the electric furnace electrode arm in the electric arc furnace and ladle furnace is very important, mainly including the following aspects:
The lifting column conductive cross arms is responsible for effectively conducting the current of the power supply to the electrode. Through the passage of current, the electric arc furnaces is able to reach the required high temperature to melt the metal.
It provides mechanical support for the electrode to ensure that the electrode maintains a stable position during operation and prevents displacement or tilting of the electrode.
The conductive cross arm is usually connected to the electrode lifting mechanism, which can control the up and down movement of the electrode, facilitating adjustment and optimization during the melting process.
Some electric furnace electrode arm are designed with a cooling system to help dissipate heat, improve overall efficiency and extend the service life of the equipment.
By providing stable current and auxiliary equipment, the electrode arms can improve the operating efficiency of arc furnaces and ladle furnaces and reduce energy consumption.
The conductive cross arm is an indispensable component of arc furnaces and ladle furnaces, ensuring the effective conduction of current and the stability of the electrode, which is crucial to the smooth progress of the smelting process.
If you need more detailed information about the lifting column conductive cross arms or have specific questions, please feel free to contact us!
