Jan. 17, 2025

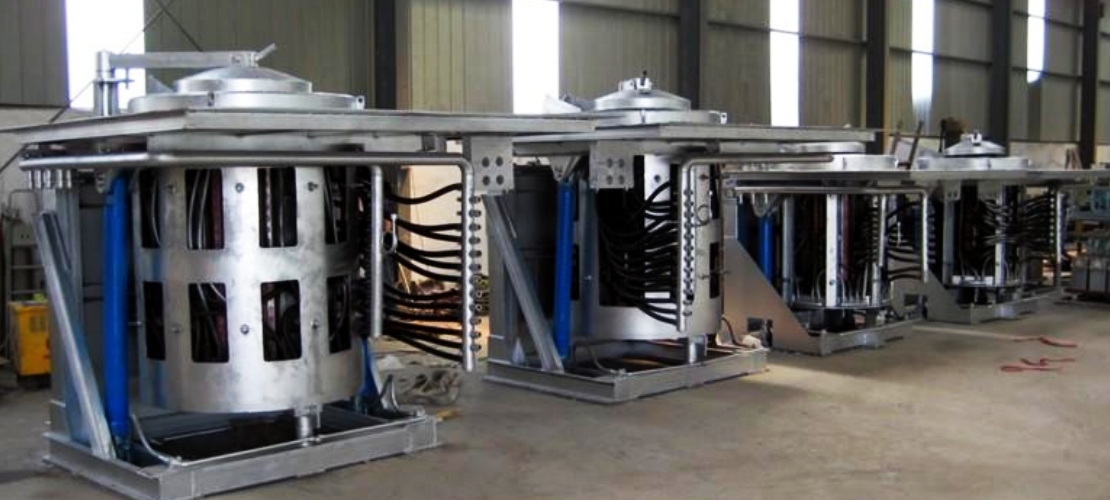

The steel shell medium frequency induction furnace is a frequency conversion device that converts three-phase industrial frequency current into single-phase medium frequency current. It uses the principle of electromagnetic field induction to cause eddy current loss in the metal, thereby achieving the purpose of heating and melting.
This induction furnace is widely used in the smelting of ferrous or non-ferrous metals such as steel, copper, and aluminum.
The medium frequency furnaces is mainly based on the principle of electromagnetic induction. The specific process is as follows:
The induction furnace uses a medium frequency power supply (usually between 1000 Hz and 10 kHz) to convert industrial frequency electricity (50 Hz or 60 Hz) into medium frequency current.
The medium frequency current passes through the induction coil and generates an alternating magnetic field around the coil.
When metal materials (such as iron, aluminum, copper, etc.) are placed in the medium frequency induction furnaces, the alternating magnetic field will generate eddy currents in the metal. These eddy currents will generate heat inside the metal, causing the metal to heat up quickly and melt.
As the temperature rises, the metal eventually reaches the melting point and is kept at a certain temperature for stirring or other process treatment.
The molten metal can be poured or molded through the steel tapping port.
Compared with traditional furnaces, steel shell medium frequency induction furnace have fast heating speed and high energy utilization rate.
Induction furnace can accurately control temperature and are suitable for melting various alloys.
Due to lower flue gas emissions, less pollution and less impact on the environment.
Regarding medium frequency furnaces, EAF, SAF, LRF, VD, VOD and other metal smelting furnaces, if you have more questions and needs or need to understand a certain aspect in depth, please feel free to contact us.
Sanrui is committed to providing every user with high-quality, guaranteed one-stop service and turnkey projects.
