Mar. 13, 2025
Innovative solution to improve melting efficiency - conductive cross arm
In the modern steel and aluminum smelting industry, melting efficiency and energy conservation are important goals pursued by enterprises. To meet this demand, the electrode arm, an innovative accessory, plays an important role in improving the current conduction performance during the melting process of electric arc furnace (EAF) and induction furnace (SAF).

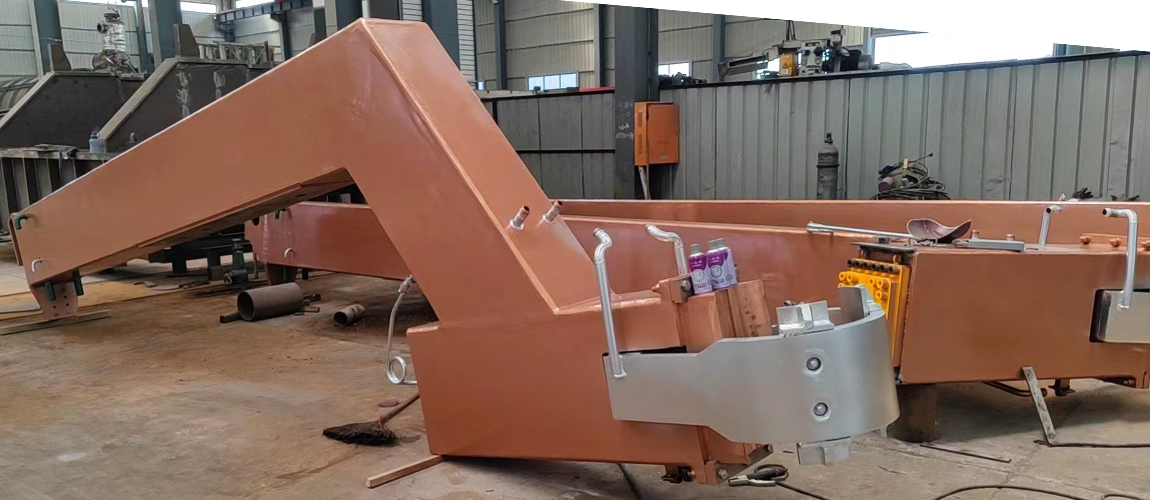

The electric furnace conductive cross arms is a key component used in electric arc furnaces and induction furnaces, which is mainly responsible for the effective transmission of current between the power system and the melt in the furnace. SR Furnace's conductive cross arms uses highly conductive materials and combines advanced manufacturing processes to optimize the distribution of current, thereby improving overall melting efficiency and reducing energy consumption.
The highly conductive material makes the transmission of current more efficient, reduces the energy loss caused by resistance, and directly reduces production costs.
The heat-resistant and wear-resistant characteristics of the electric furnace conductive cross arms can effectively withstand the fierce working environment, extend the service life of the equipment, and reduce the maintenance frequency.
The electrode arm designed by SR Furnace are compact, easy to install and maintain, helping users save time and labor costs.
Through uniform current distribution, the electric furnace conductive cross arms can help improve the temperature uniformity of the melt, thereby improving the quality of the cast metal products.
Whether it is a large steel plant or an aluminum smelting company, SR Furnace's conductive cross arm is compatible with various types of arc furnaces and induction furnaces, providing flexible solutions for companies of different sizes.
In today's technological advancement, choosing the right furnace accessories and equipment is the key to improving productivity and maintaining competitiveness. SR Furnace's electric furnace electrode arms, with their excellent performance and high cost performance, have become an indispensable tool in the smelting industry, bringing significant economic benefits to enterprises.
