Dec. 11, 2024

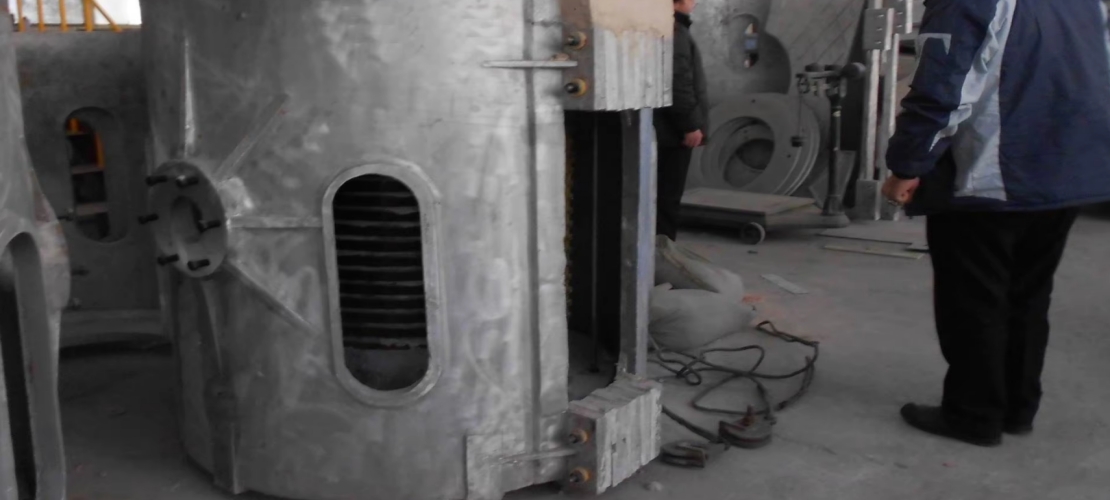

Coreless type induction furnace refers to an induction furnace without an iron core passing through the inductor, which is divided into:
Power frequency induction furnaces
Triple frequency induction furnaces
Generator set medium frequency induction furnaces and other types.
IF are usually divided into induction heating furnaces and melting furnaces.
Melting furnaces are divided into two categories: coreless induction furnaces and coreless induction furnaces.
Core induction furnaces have an iron core passing through the inductor and are powered by a power frequency power supply. They are mainly used for the melting and heat preservation of various cast iron, brass, bronze, zinc and other metals. The electrical efficiency is more than 90%, waste materials can be used, the melting cost is low, and the maximum furnace capacity is 270 tons.
Coreless induction furnaces have no iron core passing through the inductor, which are divided into power frequency induction furnaces, triple frequency induction furnaces, generator set medium frequency induction furnaces, thyristor medium frequency induction furnaces, and high frequency induction furnaces.
The advantage of induction electric furnace is that the loss of raw materials is much smaller than other equipment.
Frameless induction furnaces are a highly efficient metallurgical equipment, mainly used for metal melting and heating. It has the following characteristics:
Coreless type induction furnace usually have high energy conversion efficiency and high power utilization.
The temperature distribution inside the metal is uniform during induction heating, which can avoid quality problems caused by temperature differences.
The induction electric furnace has a high degree of automation, and the operator can monitor and adjust in real time through the control system.
Compared with traditional combustion furnaces, coreless induction melting furnaces have less emissions and help improve the working environment.
Due to the coreless structure, induction melting furnace reduce component wear and relatively low maintenance costs.
If you have specific questions about coreless type induction furnace or its application, please feel free to contact us and consult!
