Jan. 10, 2025

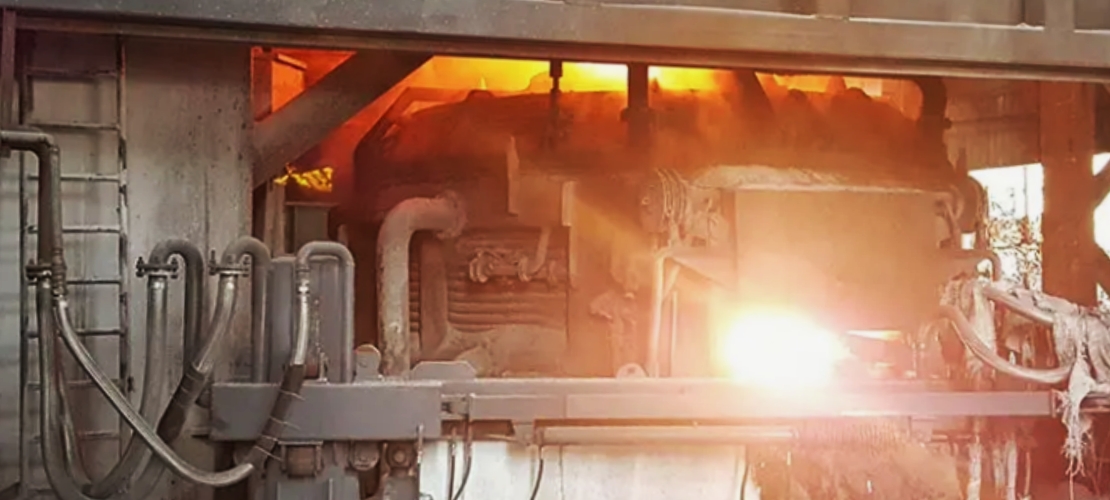

A 1 ton electric arc furnaces is a furnace used for melting and refining metals. It is suitable for small to medium-sized steelmaking and other metallurgical processes and is capable of melting a variety of metals.
Its main technical parameters include a transformer capacity of 800KVA, a primary voltage of 10KV, and a DC current of 6300A and a DC voltage of 135V. It is usually used in foundries to produce cast iron products. So it is also called a cast iron electric arc furnace.
It can handle about 1 ton of molten material, suitable for small and medium-sized production needs.
EAF uses an electric arc formed between graphite electrodes to heat and melt scrap metal or other charged materials. The temperature can reach up to 1,600°C (2,912°F).
Cast iron electric arc furnace are generally more energy-efficient than traditional blast furnaces, with faster melting cycles and lower emissions.
Electric arc furnace cast iron can precisely control the melting process and alloy composition, thereby producing higher quality steel products.
Electric arc furnaces can utilize a variety of raw materials, including scrap metal, direct reduced iron (DRI), and even pig iron.
Steelmaking EAF generally have a lower environmental impact, utilizing electricity instead of fossil fuels and producing less air pollution.
Steel Production: Electric arc furnace cast iron is primarily used to produce recycled steel from scrap metal.
Special Alloys: It can also be used to melt specialty alloys and castings.
Cost Effectiveness: Reduces operating costs and enables the production of high-quality steel.
Reduced Waste: Scrap and by-products can be reused.
The 1 ton electric arc furnaces represents a modern, flexible, and efficient solution for metal melting and refining, particularly suited to operations that prioritize sustainability and high-quality output.
If you have specific questions about the operation, design, or application of electric arc furnace cast iron, please feel free to contact us.
