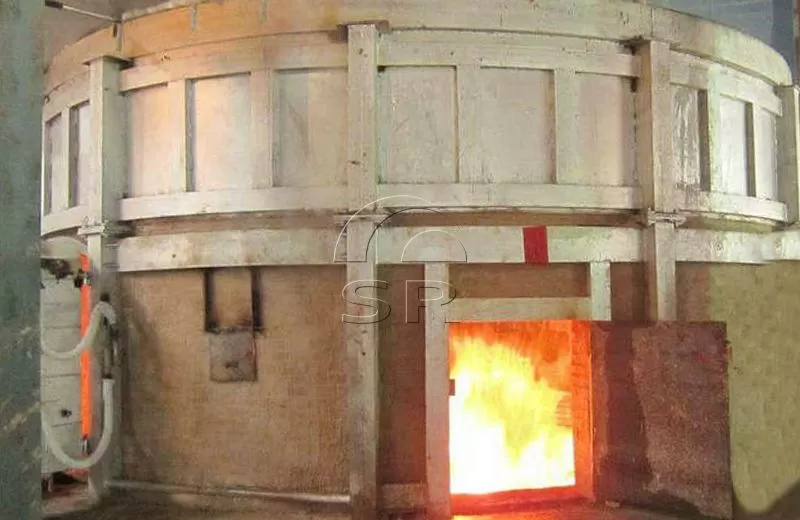

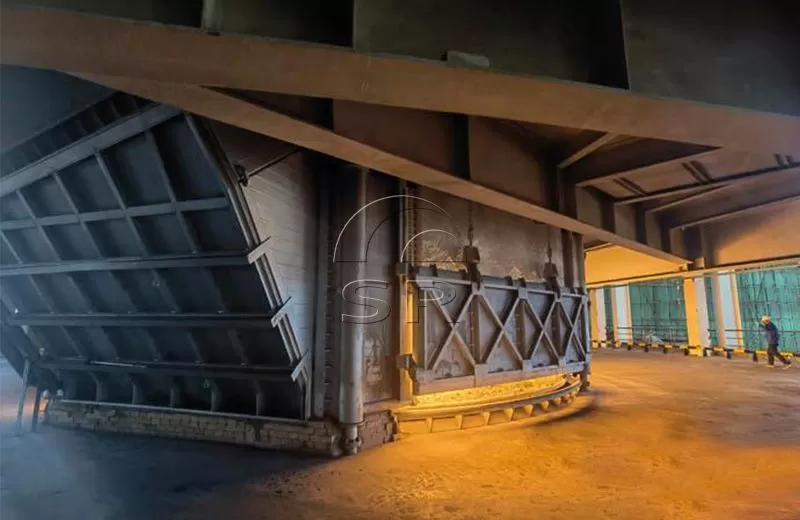

9 MVA Submerged Arc Furnace
Submerged arc furnaces is particularly suitable for the field of metallurgy, especially for the smelting of ferrosilicon, silicon manganese, silicon aluminum and other ferroalloys. Its working principle relies on arc heating technology, which melts the raw materials and reacts chemically through high-temperature arc.
9 MVA submerged arc furnace is a type of equipment used for smelting, typically used to produce materials such as ferroalloys. For example, Sanrui plans to install two 9 MVA SAF for a customer to support 24,000 tons of ferroalloy production per year. In addition, the design of a submerged arc furnace typically includes a refractory lining to improve its durability and efficiency.
Introduction of Submerged Arc Furnaces
Submerged arc furnaces is particularly suitable for the field of metallurgy, especially for the smelting of ferrosilicon, silicon manganese, silicon aluminum and other ferroalloys. Its working principle relies on arc heating technology, which melts the raw materials and reacts chemically through high-temperature arc.
SAF consists of a pre-electrode, a furnace body, a conductive furnace bottom and a rectifier power supply. The top electrode is composed of three electrodes arranged in an equilateral triangle in the center of the furnace, serving as the negative electrode and connected to the negative electrode of the rectifier through a copper bus and a soft copper wire; the metal bottom electrode is led out from both sides of the furnace bottom and connected to the positive electrode of the rectifier through a soft copper wire and a copper bus.
The smelting equipment produced by submerged arc furnace manufacturer Sanrui , is durable and can efficiently generate high temperatures. Its an important equipment for smelting metals and producing alloys. Due to its continuous production capacity an
Main Uses of Submerged Arc Furnace
Steel Production: Smelting furnaces by Sanrui submerged arc furnace factory, are widely used for recycling and smelting scrap steel, using an electric arc to provide enough heat to melt the scrap steel and create new steel.
Alloy Production: Submerged arc furnaces can efficiently melt and chemically react raw materials when making various metal alloys (such as manganese alloys, silicon alloys and chromium alloys).
Electrolytic Aluminum Production: In some cases, submerged arc furnaces can also be used for aluminum smelting, especially when recycling old aluminum products.
Reducing Other Metals: SAF can be used to reduce raw materials such as metal oxides to metals, such as reducing iron ore to iron.
Melting of Refractories & Minerals: In the production of cement and refractories, submerged arc melting furnaces can provide the heat required for high-temperature melting.
Features of Submerged Arc Electric Furnace Equipment
1.Electric arc furnace is also called electric arc furnace or electric resistance furnace. Its working characteristics include the use of carbon or magnesium refractory materials as furnace lining and the use of self-baked electrodes.
2.This type of furnace is mainly used for the reduction and smelting of raw materials such as ore, carbonaceous reducing agent and solvent. The ferroalloy produced is an important raw material in the metallurgical industry and is also used for the production of chemical raw materials.
3.The technical characteristics of submerged arc electric furnace include the use of graphite electrodes or self-baking electrodes, and the furnace bottom is connected to one pole of the power supply. 4.The furnace bottom is both a conductor and a melting crucible. Its main heat conduction mechanism is direct and stable unidirectional convection, which is superior to AC arc in the metallurgical process.
5.The electric arc smelting furnace has the advantages of simple structure, stable arc, concentrated power, high thermal efficiency, high power factor, low smelting power consumption, low electrode consumption, and low operating noise.
6.These characteristics make the electric furnace perform well in production efficiency, energy saving and consumption reduction, so it is widely used in metallurgy, chemical industry and other fields, and has made important contributions to the sustainable development of my country's industry.

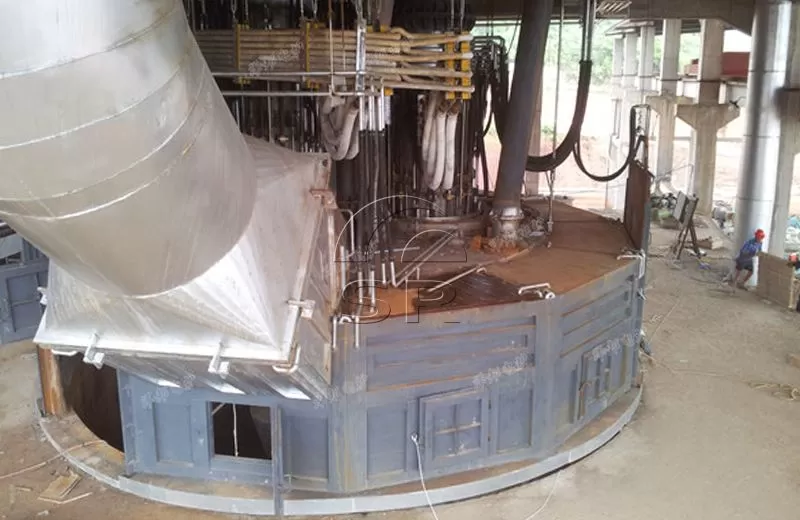

Submerged Arc Furnace Equipment Composition
The electric furnace usually provided by submerged arc furnace manufacturer Sanrui, includes the following:
Furnace body
Electrode
Furnace mouth
Furnace cover
Melting pool
Refractory material
Carbon brick
Furnace bottom refractory brick
Furnace shell
Soft copper wire
Top electrode copper busbar
Rectifier
Rectifier transformer
Water cooling system and other components
Other auxiliary equipment
The equipment provided by the submerged arc furnace factory is widely used in ore smelting, ferroalloy smelting, metal smelting, etc. Different equipment has different compositions and configurations.

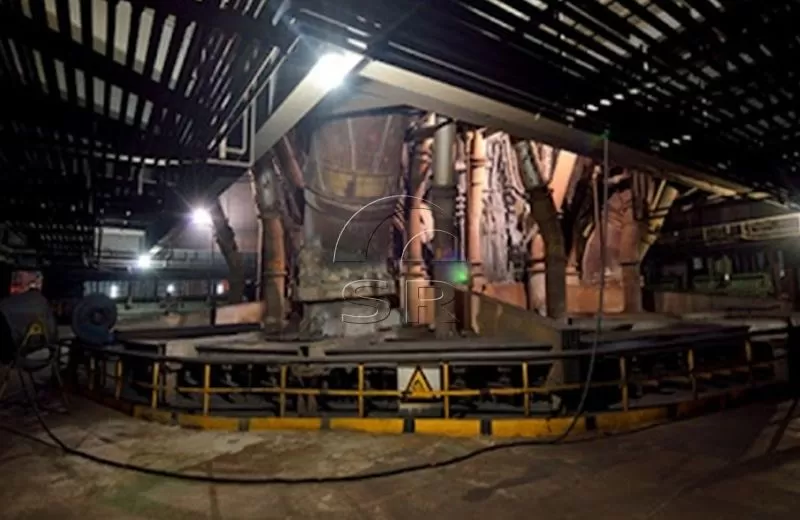

Sanrui 9 MVA Submerged Arc Furnace Technical Advantages
High efficiency
The technical advantages of the submerged arc furnaces are mainly reflected in its high efficiency, energy saving, flexibility and intelligence.
Energy saving & environmental protection
Compared with traditional coke furnaces, DC submerged arc furnaces have lower energy consumption and pollution emissions.
High quality
The 9 MVA submerged arc smelting furnace is suitable for high-quality smelting and smelting by optimizing electrode materials and structures.
Simple operation
The SAF has a simple operation and maintenance process, which can reduce labor costs.
Strong adaptability
The smelting furnace is suitable for the smelting and smelting of various ores and metals, and has a wide range of applications.
9 MVA Submerged Arc Furnace Main Equipment Parameters
| No. | Item | Unit | Parameters | Remark |
| 1 | Submersible arc furnace type | Set | 9 MVA Submerged smelting furnace | |
| 2 | Transformer rated capacity | kVA | 9MVA | |
| Transformer primary voltage | kV | 35 | ||
| Transformer secondary rated current | A | Calculated based on the rated capacity and secondary rated voltage of the transformer | ||
| 3 | Electrode diameter (graphite electrode) | 1050mm | ||
| 4 | Furnace diameter | 6000mm | ||
| 5 | Furnace depth | 2300mm | ||
| 6 | Furnace shell diameter | 7600mm | ||
| 7 | Arc voltage | Usually 150-800V | ||
| 8 | Furnace material | Refractory brick and cast steel structure | ||
| 9 | Furnace capacity | 5-20 tons | ||
| 10 | Cooling system | Water cooling system | ||
| 11 | Power type | AC power supply | ||
| 12 | Control system | Automation control system | ||
| 13 | Cooling method | Water cooling and air cooling | ||
For complete equipment and investment estimates, which usually include the main electrical parts (such as high-voltage cabinets, low-voltage control cabinets, cables and furnace pipelines, transformers, etc.) and the main mechanical parts (such as furnace shell, furnace lining, furnace cover, chimney, furnace exhaust system, short net, etc.), please contact us directly.
Please note that these parameters may vary depending on the manufacturer and product model.
In addition, the design and manufacture of submerged arc furnaces involve complex engineering technology and safety standards, so the relevant specifications and standards should be strictly followed during purchase and use to ensure the safety and reliability of the equipment.
Scope of SAF Furnace Supply
High-voltage cabinet / low-voltage (PLC) control cabinet
Cables and furnace pipelines (low-voltage side of the furnace)
Transformer
Main mechanical part
1. Furnace shell (including I-beam at the bottom of the furnace)
2. Furnace lining
3. Furnace cover (including refractory materials on the inner wall)
4. Chimney
5. Furnace exhaust system (including exhaust fan)
6. Short net
Water cooling system
Handler
Guide device
Hydraulic system (cylinder, oil tank, valve body, etc.)
Cooling water system (in the main workshop)
Iron tapping system
Feeding system
Feeding system
Dust removal system, etc.
Submerged Arc Furnaces Smelting Process
Key points of SAF smelting process
Smelting temperature
The maximum temperature of the submerged arc furnaces smelting process can reach 1300℃, which mainly depends on the solubility and melting point of the compound to be smelted.
Timing & amount of feeding
During the smelting process, the timing and amount of feeding should be considered. The timing of feeding depends on the oxide content of the substance generated by electrolysis and the change of the capacity of the SAF. The amount should be determined according to the actual production situation to ensure the effectiveness of the submerged arc electric furnace smelting process.
Smelting time
The time of the SAF smelting process should be controlled to ensure the quality of the smelted product. Generally speaking, the smelting time of the mixture is about 2-4 hours.
Control of smelting temperature
During the smelting process, the change of temperature has a very important influence on the quality of the smelted product. Sometimes it is lower than the lowest temperature of the furnace, and sometimes it is higher than the highest temperature of the furnace. It is necessary to control the content of oxides and the volatilization of water. The temperature control should be flexible and direct heating and cooling should be controlled.
Submerged Arc Melting Furnace Smelting Process Flow
Raw material heating: Put the mixture to be smelted into the submerged arc furnace, and arrange air to be sent into the electric furnace to heat the mixture until its internal temperature is low.
Electrolytic ionization: Convert the mixture into tantalum compounds, ionize them through electrolysis, and extract the minerals from the tantalum compounds to achieve the smelting purpose.
Continue smelting: Add the mixture to be smelted and the minerals generated by electrolysis into the 9 MVA submerged arc furnace for further smelting.
Adjust airflow & temperature: When the airflow and temperature adjustment settings are appropriate, the target smelting period reaches the critical point of radioactive material reduction, and a lower concentration of minerals (or other minerals) can be obtained.
Cooling & storage: Stop heating, cool the smelted product to room temperature, take it out and store it in the warehouse required for final processing.
Sanrui Ore Heat Melting Furnace Technology Optimization
The optimization of ore heat melting furnace technology is a comprehensive process involving improvements and upgrades in many aspects.
1. Optimization of electrical parameters and equipment structure
Electrical parameter optimization: submerged arc furnace factory improve the efficiency of electric energy utilization and reduce energy waste through precise electrical parameter design, such as voltage, current, power factor, etc.
Equipment structure optimization: Optimize the furnace body material and structure so that it can withstand extreme conditions such as high temperature and high pressure, and extend the service life of the equipment.
2. Application of intelligent & automated technology
Intelligent control system: Adopt advanced control equipment such as PLC (programmable logic controller) and touch screen to achieve real-time monitoring and precise control of the smelting process.
Automated auxiliary equipment: Promote the use of automated auxiliary equipment to reduce manual intervention and improve production efficiency and safety.
3. Improvement of energy-saving and environmental protection technology
Energy-saving and consumption-reducing technology: Use energy recovery and waste heat utilization technology to recover the waste heat and energy in the waste gas generated during the smelting process and reduce energy consumption.
Environmental protection treatment technology: Improve the treatment facilities for waste gas, waste water, waste slag, etc. to achieve the reduction, harmlessness and resource utilization of waste.
4. Improvement of safety performance
Safety education & training: Strengthen safety education and training for operators to improve their safety awareness and operating skills.
Safety monitoring & early warning system: Introduce a safety monitoring and early warning system to monitor the operating status of equipment and smelting process parameters in real time, and promptly discover and deal with safety hazards.
5. Expansion of application fields
SAF melting furnaces not only have broad application prospects in the metallurgical industry, but can also be expanded to other fields such as chemical industry and materials. By continuously optimizing and improving submerged arc smelting furnace technology, we can promote technological progress and industrial upgrading in these fields.
Services Provided by Sanrui
1.Sanrui provides comprehensive services and support to ensure the smooth operation of customers' SAF Furnace projects. Specific services include:
2.Foundation layout and layout drawings:
3.Provide detailed foundation layout and layout drawings to help customers plan a reasonable production layout.
4.Installation & commissioning of machines:
5.Sanrui submerged arc furnace factory will send engineers to your factory to install and commission the machines, and provide reliable after-sales service.
6.Operation & maintenance personnel training:
7.Provide operation and maintenance personnel training to make smelting equipment easy to operate and maintain.
8.Competitive price & excellent quality:
9.Provide high-quality products at competitive prices to ensure high returns.
10.Stable equipment performance & safe production:
11.Ensure the stable performance of smelting equipment and achieve safe production.
12.Customized products: Customize products according to different needs to meet diversified production requirements.
13.Production capacity adjustment: Adjust production capacity according to customer requirements and flexibly respond to market demand.
14.Environmentally friendly & low energy consumption: Provide environmentally friendly and low energy consumption solutions in line with the requirements of sustainable development.
Sanrui Electric Furnace has rich experience in designing, manufacturing, installing, commissioning and commissioning steelmaking process equipment. We provide a full range of engineering and technical services, including engineering consulting, R&D design, equipment supply, system integration and software development, construction and installation, project management, technical services and training, production guidance, operation and maintenance, and spare parts supply. Send us your detailed project requirements, and our engineering team will design a 9 MVA submerged arc furnace production line solution based on your needs.
