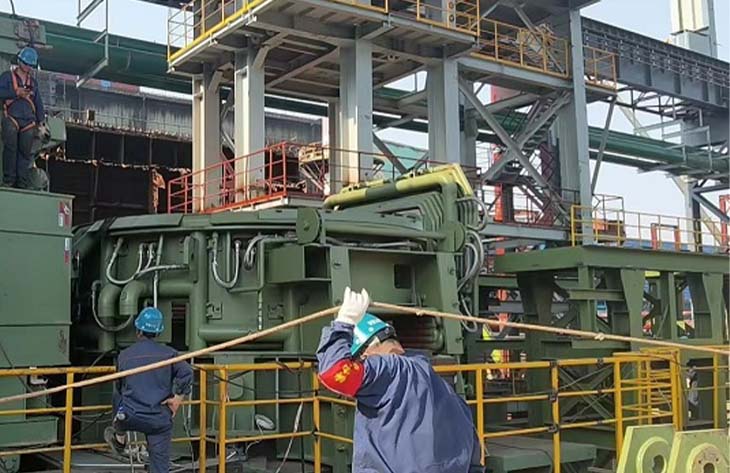

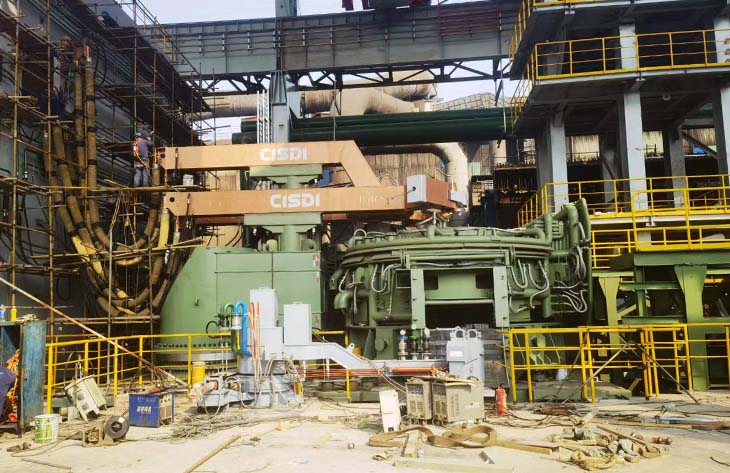

50-ton Electric Arc Furnace Project in Brazil

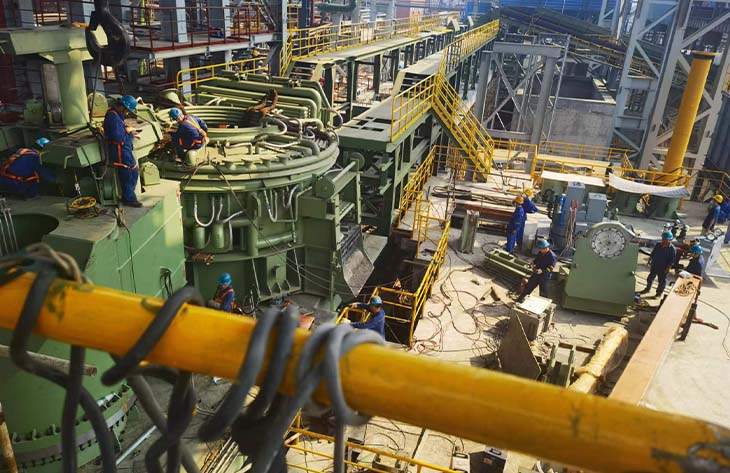

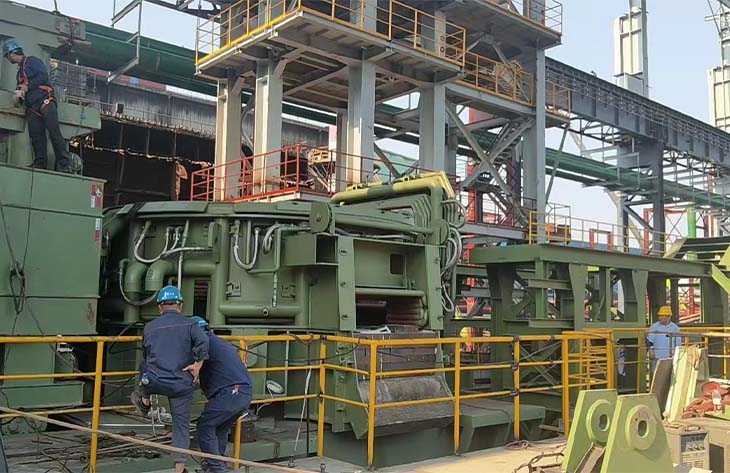

1 EAF-50t/25 MVA electric arc furnace, 2 LF-25t/5MVA refining furnaces, 1 fully automatic alloy charging system, as well as other public auxiliary facilities (ladle, ladle cart, material basket, etc.) and three power supporting systems ( High pressure, low pressure, automation).
The production variety is special steel, and the products are castings (sand molds, steel ingot molds).
Technical parameters: Transformer rate power: 25MVA, furnace shell diameter: Ф4800mm, electrode diameter: Ф450mm, tilting angle: 40/10 degrees, trough tapping method.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
Ordinary water-cooled cable electrode is welded with copper tube and copper bar and not closely connected with equipment;
Submerged Arc Furnace Pressure Ring
Submerged arc furnace pressure ring is used to monitor the change of air pressure in the furnace in real time, and adjust the air pressure automatically or manually according to the preset parameters to ensure the stability of air pressure in the furnace
Water Cooled Roof Elbow for Fume Extaction System
The Water Cooled Roof Elbow is mainly used to change the flow direction of flue gas in the flue gas emission system. Meanwhile, the water cooling system is used to reduce the temperature of the bend and its surrounding environment to ensure the stable operation of the system.
The design of the submerged arc furnace main mechanical device by Sanui is based on China's national conditions and draws on international advanced technologies such as Demark and Perlmutter.
The submerged arc furnace water cooled compensator is a pipe device composed of inner and outer tubes, water tubes, elongation indicators and fixed supports.
30 Ton AC Electric Arc Furnace
The 30-ton AC electric arc furnace is used to melt scrap steel to produce steel. Electrical energy is used to melt scrap steel. An arc forms between the charged material and the electrode.
Titanium slag production adopts titanium slag electric furnace (circular furnace and rectangular furnace according to its shape) smelting process.
Forged copper tile is one of the main accessories in submerged arc furnace (silicon metal furnace, calcium carbide furnace and iron alloy furnace). It generates heat energy due to passing through large current at high temperature, and is easy to be damaged due to poor working environment.
Sanrui is well experience in design, manufacturing, installation, commissioning of steelmaking furnace process equipment. Send us your project details inquiry and our team of engineers will design a metallurgical furnace equipment system solution from A to Z based on your needs.
