Induction furnace's IF Water-cooled cable is a cable system that transmits electric energy and cooling water to IF electric furnace at the same time. The high frequency electric field in the IF furnace will cause the internal conductor to transmit electric energy and generate resistance heating.

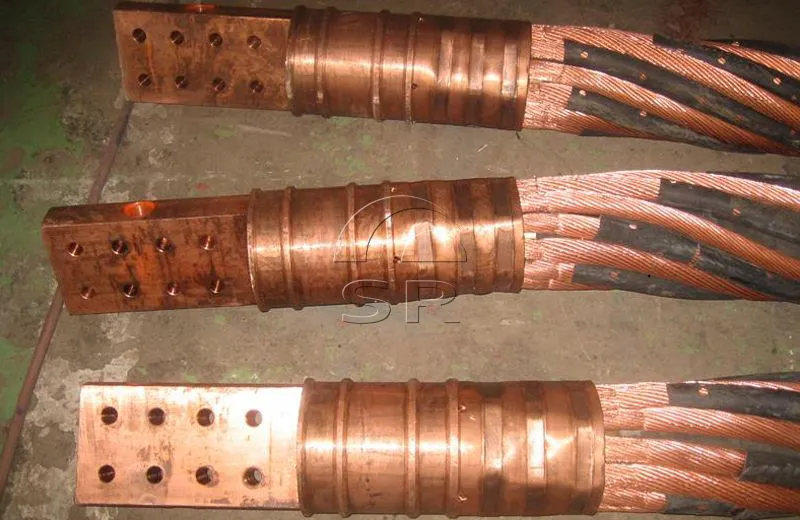

IF Water Cooling Cable Introduction
Water cooled cable for induction furnace is widely used in engineering, mainly used in high-temperature metallurgy, medical devices and industrial heating fields.
Especially in high temperature metallurgy, water-cooled cables play an important role in the intermediate frequency furnace smelting process and are used to transport cooling water or other cooling media to reduce the temperature outside the furnace.
Application
Water-cooled cable of IF furnace is widely used in engineering, mainly used in high-temperature metallurgy, medical devices and industrial heating fields.
Especially in high temperature metallurgy, water-cooled cables play an important role in the intermediate frequency furnace smelting process and are used to transport cooling water or other cooling media to reduce the temperature outside the furnace.
Water-cooled cable of IF furnace mainly consists of the following parts:
1. Inner conductor: The portion of a induction furnace water cooled cable that transmits electrical energy, usually made of a highly conductive material.
2. Insulator: ensure insulation safety of cable and prevent current leakage and short circuit.
3. Metal sheath: Intermediate water cooled cables protects the insulator and inner conductor, prevents the external environment from damaging the cable, and plays the role of grounding.
4. Cooling Water Channel: Located inside the metal sheath, it is used to circulate cooling water into the metal sheath to cool the heat generated inside the cable.
Compared with other cooling modes, the water-cooled cable of IF furnace has the following advantages:
Significant heat dissipation effect, which can better ensure the temperature stability of the furnace body.
Good cooling effect can reduce the cable temperature and improve the service life of the cable.
Capable of withstanding higher current and improving heating efficiency of intermediate frequency furnace.
Less prone to fire, explosion and other safety accidents, with higher safety performance.
Main Functions
Electric energy transmission: IF electric furnace requires a large amount of electric energy to heat metal materials, and the water cooling cable transmits electric energy from the power supply to the induction coil in the electric furnace through the inner conductor, so as to realize high-efficient electric energy transmission.
Cooling water supply: in order to maintain the normal operating temperature of the electric furnace components, cooling water is required to cool the coils and electrodes inside the electric furnace. The cooling water channel in the water-cooled cable is responsible for transferring the cooling water to the inside of the electric furnace for cooling.
Maintenance safety: the design and performance of IF water-cooled cable are directly related to the safety and stability of the electric furnace. It can withstand high current and high temperature while maintaining the reliability of the water cooling system.
